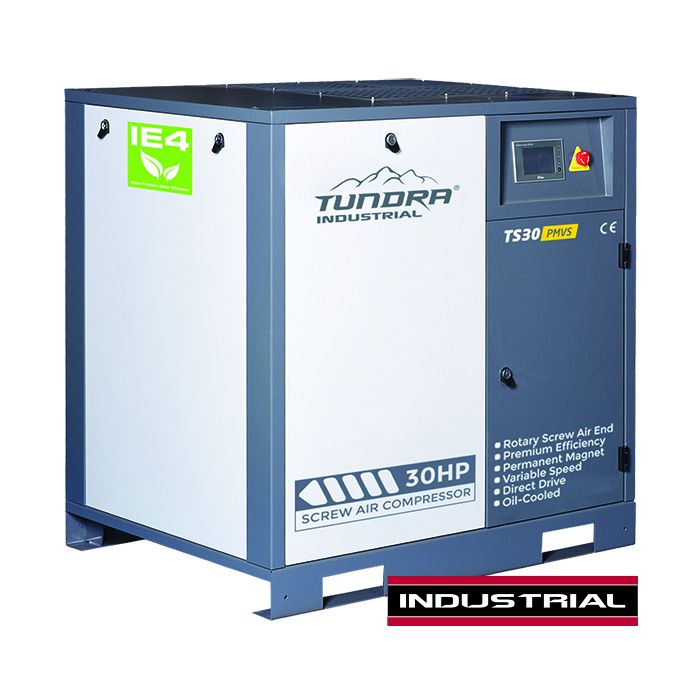

Tundra 30HP Screw Compressor 10 Bar / Refrigerated Dryer
Contact Sales +353 (0)14730300 | +44 (0)1244 646 048
SKU
TUNCINDSPMVS-30.0
Tundra 30HP Screw Compressor 10 Bar 415v
• Variable speed permanent magnet oil cooled motor
• Direct drive
• Includes refrigerated dryer and pre & after filter
• Fitted with an energy efficient heavy duty three-phase electric motor (IE4)
• Low noise levels with sound levels measured at 69/70dB(a) from a 1.5 metre distance
• 96% efficiency at full load
• 100% duty cycle application
• Schneider switchgear
Product features
- SKU TUNCINDSPMVS-30.0
- Voltage 3 Phase
- Power Mains
- Input Current 50A
- Motor Power 30HP / 22kW
- Max. Pressure 10bar / 145psi
- Free Air Delivery 2.8m³/min @ 10bar / 99cfm
- Discharge Air Connection 1"
- Motor Speed 3000rpm
- Gross Weight 370 kgs
