Dynamo 630A Starter Charger
Contact Sales +353 (0)14730300 | +44 (0)1244 646 048
SKU
JEFSTACHG630

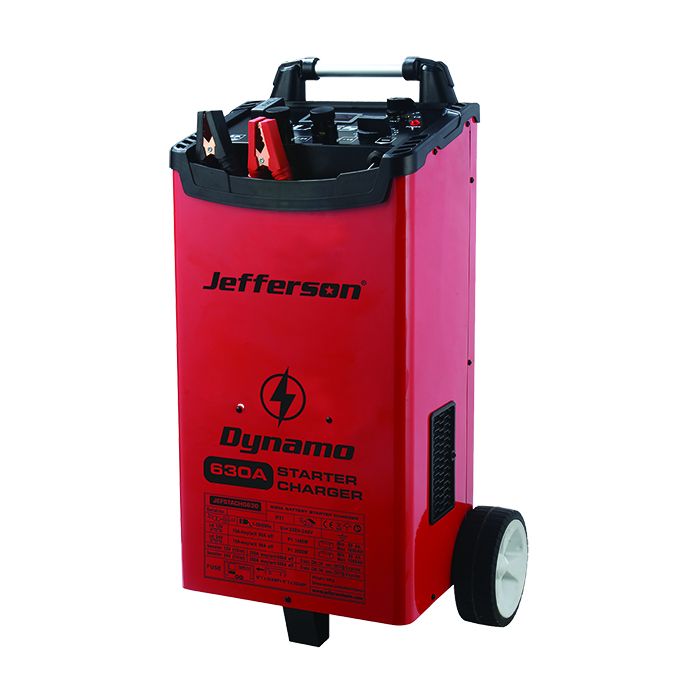

Jefferson Dynamo 630A Starter Charger
• 630A single phase battery / starter charger
• Well ventilated to help maintain low temperatures during operation
• Large ammeter display showing rate of charge
• Dash-mounted fuse and polarity protection
• Variable charging rate
• Supplied with a pair of fully insulated positive and negative charging clamps which can be stored within the equipment casing
• Suitable for charging regular and low maintenance batteries between 80 - 1000Ah
Product features
- SKU JEFSTACHG630
- Charging Cables 16mm x 2.0mm
- Plug 13A
- Power Cable 3x 1.5mm x 2.4m
- Input Power 180W
- Input (Charge) 0.5A
- Input (Start) 4A
- Battery Capacity (Min - Max) 80-1000Ah
- Output Voltage 12V / 24V
- Output Start Peak (EN) 600A (350A)
- Output Charge Peak (EN) 90A (70A)
- Duty Cycle 5sec on / 30sec off @5 cycles
- Fuse 3 x 50A
- Gross Weight 19.25 kgs
